Booksize PC

With a footprint of only 7 3/5" x 5 1/2" the KPC6 compact PC will fit just about anywhere. With 4 RJ45 COM ports, 4 USB ports, 1 RJ45 LAN port, and 1 cash drawer port, this Booksize PC can run your Cash Register or POS Workstation.

Booksize PC
  • Features
  • Specifications

• Intel Atom Embeded computing platform delivers high graphic performance as well as low-power consumption

• Reliable ventless and fanless system

• Ultra compact size

• Flexible mounting support

• Provide most popular I/O ports

• Intel 6200 a/b/g/n wireless LAN card & Antenna (option)

• External wireless antennas boost the performance in connectivity (option)

Model Name: KPC6
Motherboard C36
Processor Intel® Atom™ N270 processor 1.6GHz L2 512K FSB 533MHz
Chipset Intel® 945GSE + ICH7M
System Memory 1 x DDR2 DIMM up to 2GB
Graphic Memory Intel® GMA 950 share system memory up to 224MB
Storage Device
Hard Drive 1 x 2.5" slim SATA HDD
Flash Memory 1 x pSSD (option)
Mini PCI-E Slot 1
Front I/O
Line-out 1 (option)
Antenna Jack 1

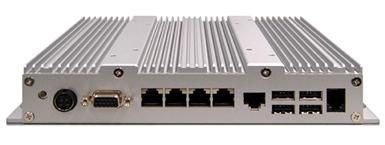

Rear I/O
USB Port 4 x USB 2.0
Serial Port 4 x RJ-45 (COM3 / COM4 with 5V / 12V power)
LAN Port 1 x RJ-45 (10/100/1000Mbps Giga LAN)
Parallel Port (Optional) USB to DB25F Parallel Adapter
VGA 1 x DB-15F
Cash Drawer Port Support cash drawer 1 x (12V / 24V)
DC Jack 1 x DC-19V
Power LED Indicator 1
Power Button 1
Power Adapter (DC 65W, 19V, 3.4A)
EMC & Safety FCC Class A / CE Mark / LVD
Operating Temperature 5°C ~ 35°C (41°F ~ 95°F)
Storage Temperature -20°C ~ 55°C (-4°F ~ 140°F)
Operating Humidity 20% ~ 80% RH non-condensing
Storage Humidity 20% ~ 85% RH non-condensing
Wireless LAN mini PCI-E wireless LAN card 801.11 b/g and antenna (option)
Dimensions (W x D x H) 222 x 138 x 36.8 mm / 8.7" x 5.4" x1.4"
Weight 1.2kg (2.6lbs)
Mounting 100mm x 100mm Standard VESA
OS Supported Windows® XP Pro, Windows® XP Embedded,  Windows® CE, Linux
