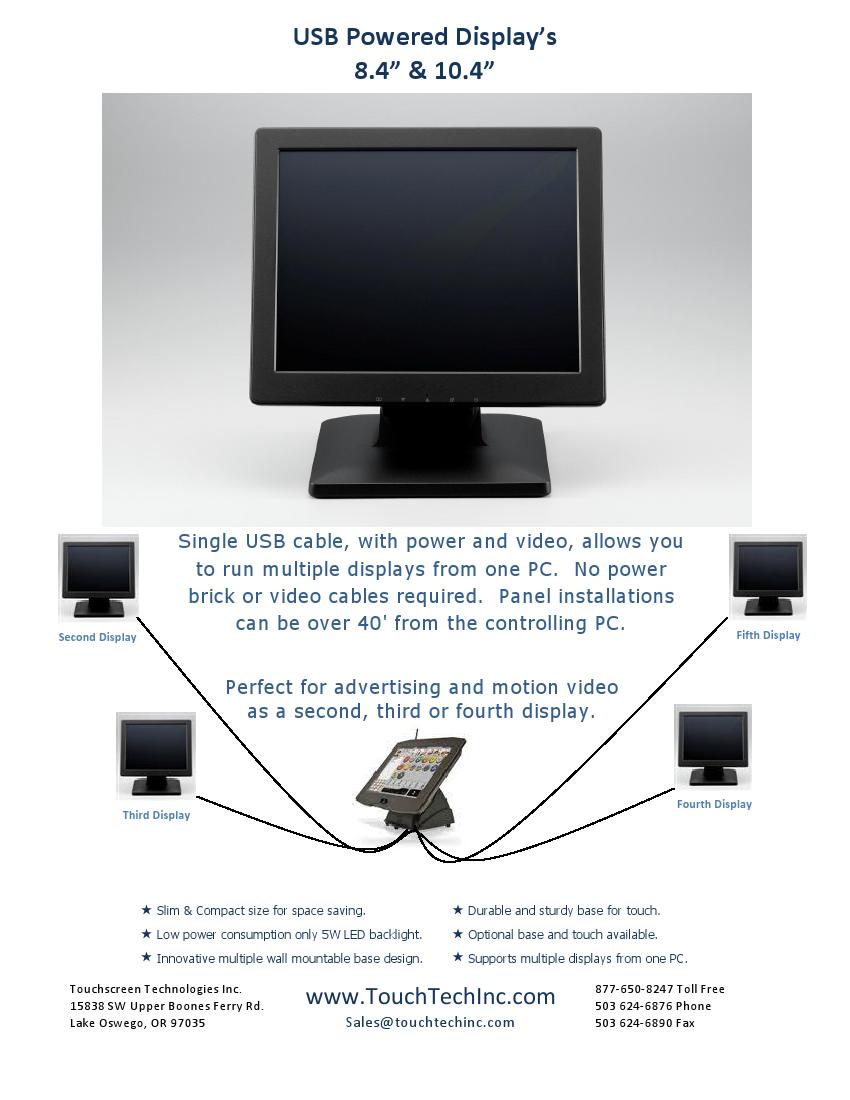

8.4" & 10.4" Digital Signage Displays

Single USB cable with power and video allows you to run multiple displays from one PC. No power brick or video cables required. Panel installations can be over 40' from the controlling PC.

Perfect for advertising and motion video as a second, third or fourth display.

  • Features
  • Specifications
  • PDF

• Slim & Compact size for space saving.

• Multiple Displays form one PC

• Low power consumption only 6W LED backlight.

• Innovative multiple wall mountable base design.

• High reliability and stability

• Durable and sturdy base for touch.

Model   USB8.4
Color Black
Display size 8.4"
Display Area 170.4 X 127.8 mm
Optimal Resolution 800 X 600
Brightness (Panel) 230 cd/m² (typ)
Contrast Ratio 600:1 (typ)
Response Time 8 ms (typ)
Viewing Angle (L/R/U/D) 75 / 75 / 60 / 70
Input Video signal connector USB B Type
Power consumption 500mA/2.5W
Input Frequency H: 31.5-60.2 kHz ; V: 56.3-75Hz
Power supply - via USB DC 5V +/- 5%
Temperature Operating : 0℃~40℃ ;  Storage : -10℃~50℃
Weight 780g (net) 680g (net) 810g (net)
Approvals CE, FCC, BSMI, CCC,UL
Lamp Life (LED backlight) 20,000 hrs
Wall Mount type VESA 75 X 75 mm
Optional items
Color White
Stand Base Yes
Wall Mounting Bracket
USB Display
