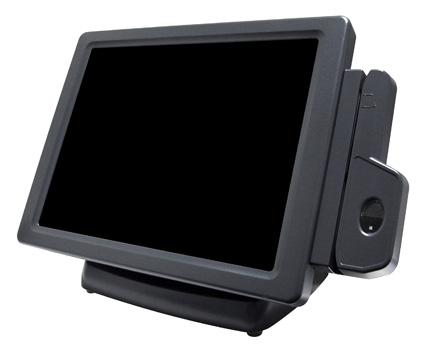

TTI 345

The TTI-345 is a compact smart design POS Terminal. An easy to access hard drive and motherboard bring the advantage of reducing your upgrade time. The low power Atom CPU combined with the small foot print makes it an energy-saving solution for any space critical environment.

Digital Dining
  Tested and Certified by Digital Dining
"Menusoft" and "Digital Dining" are registered
tradmarks of the Menusoft Corporation.

TTI 345 POS Terminal
  • Features
  • Specifications
  • Drivers
  • Photos

• Intel Atom processor delivers outstanding performance

• Low power consumption

• Fanless, quiet operation

• Wall mountable and can be used as a Podium kiosk head

• High reliability and stability

• Compact size and stationary small foot print

• 4 USB and 4 COM ports along with a GB/LAN port and a Cash Drawer port

• Tilt Adjustment 0°~70°

• 160 GB Solid state HD

• 1GB DDR2 RAM (up to 2GB)

• Magnetic Stripe Reader, Finger Print Reader, and Rear Display (Optional)

• Perfect for the Retail Environment

Model Name POS 345
Processor Intel® Atom™ Processor N270 (1.6GHz L2 512K FSB 533MHz)
System Memory 1 x DDR2 SO-DIMM up to 2GB
Video Chipset Intel® 945GSE  Express chipset + ICH7M
System Memory 1 x DDR2 SO-DIMM up to 2GB
Graphic Memory Shared System Memory up to 224MB
LCD Size 15" TFT LCD
Brightness 250 cd/m²
Native Resolution 1024x768
Touch Screen Elotouch resistive
Hard Drive 1 x 2.5" 160 GB SATA HDD
Flash Memory(Optional) SATA SSD flash card (Optional)
Expansion 1 Mini PCI-E Slot
USB Ports 4 x USB 2.0
Serial Ports 4 x RJ-45 COM connectors (COM1 & COM2 standard RS-232; COM3 & COM4 pin10 with 5V / 12V power by jumper)
PS/2 Port 1
LAN Port 1 x RJ-45 (10/100/1000Mbps Giga LAN)
Parallel Port (Optional) USB to DB25F Parallel Adapter
Second Display(Optional) 1
Cash Drawer Port 1 (12Volt/24 volt)
Speakers(Optional) 2 x 2watt
MSR(Optional) Integrated 3 Tracks MSR (PS/2)
Customer Display(Optional) VFD 2 X 20
EMC & Safety FCC Class A / CE Mark / LVD
Operating Temperature 5°C ~ 35°C (41°F ~ 95°F)
Model name
(Motherboard)		 Function OS Note

(C36)		 Chipset Windows Installation Guide
Intel SATA AHCI Windows driver User manual
VGA Win2K, XP Installation Guide
Vista
Win7
Linux
Audio
  • Realtek HD Codec
 Win2K, XP, 2003 Installation Guide
Vista, Win7
Linux
Windows XP update Dual Core CPU
Chipset

(C36)

 Touch Screen auto detect / install program. Use for:
  • ELO
  • POS Touch
  • POS Touch-HID
  • POS Touch+
 Windows
Touch Screen
  • ELO
 DOS
Windows v481
Installation Guide
Linux
Touch Screen
  • POS Touch
 DOS
Windows Installation Guide
Linux
PCI-E 1000Mb LAN
  • Realtek RTL8111
 DOS
Win9X, ME, 2K, XP Installation Guide
Vista
Linux
Mini PCI-E IEEE802.11b/g/n Wireless LAN
  • WS32L
  • WS33N
 Win2K, XP
Vista
WinXP 64bit
Vista 64bit
BIOS flash utility DOS
Windows
Hardware Monitor Windows
Watch Dog Timer (WDT) demo tool DOS With C language source code
Windows With VB language source code
Programming guide
Cash Drawer controller test utility
(use I/O port 0x48C)		 DOS With C language source code
Windows
Finger Print Module
  • U4500
 SDK for Windows and Linux
Demo and Test program (Windows) Installation Guide
Magnetic Card Reader
  • S64 series
 Windows Utility
Magnetic Card Reader
  • IDMB series
 Windows Utility
P07303-II 20*2 VFD Customer Display
  • Utility
 Configuration utility P07303-II user's manual V0.03

P07303 user's manual V1.9
User Define Font utility
Firmware Update utility
P07303 series 20*2 VFD Customer Display
  • Demo tool
 DOS
P07303 series 20*2 VFD Customer Display
  • USB driver
 Windows include Win7 support
Vista (old driver)
Win98, ME, 2K, XP, 2003 (old driver)
Linux
Stand-Front_1
download
Stand-Front_2
download
Stand-Front_3
download
Stand-Side
download
Stand-back_1
download
Stand-back_2
download
Bottom
download
