FVP-10

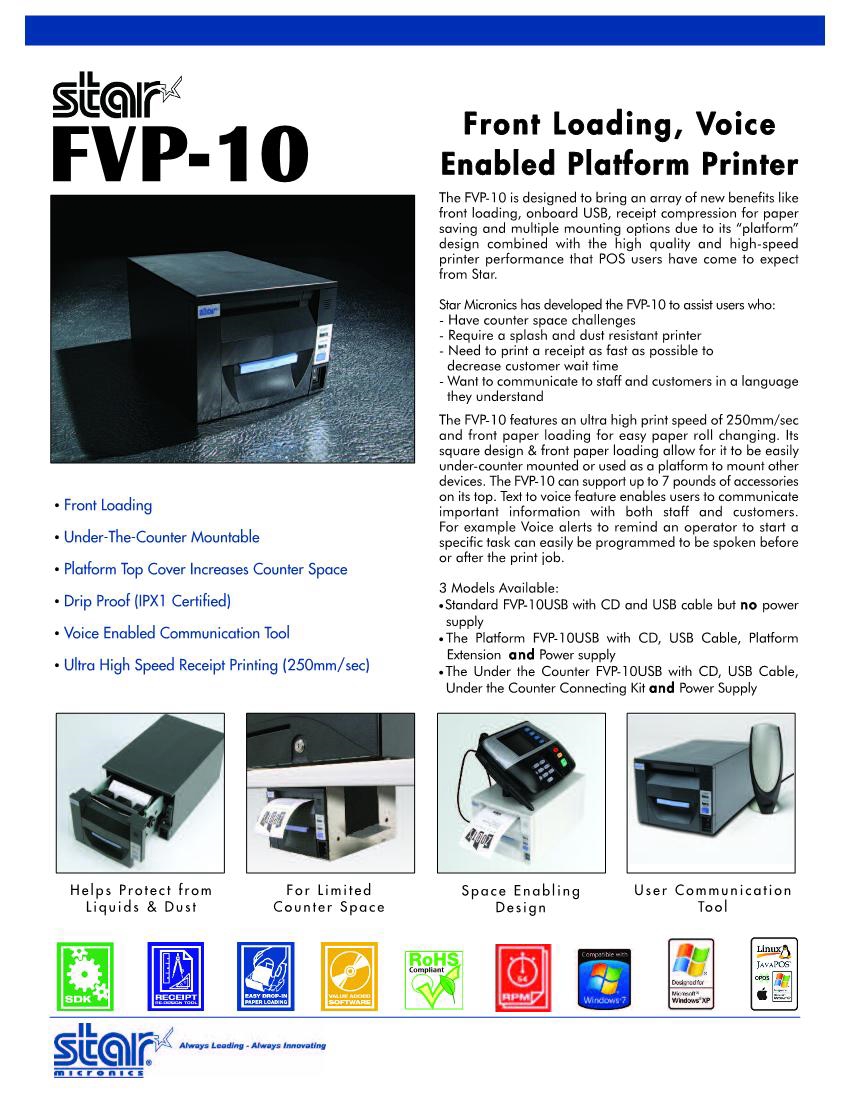

The FVP-10 features an ultra high print speed of 250mm/second and front paper loading for easy paper roll changing. Its square design & front paper loading allow for it to either be easily under-counter mounted or used as a platform to mount other POS devices. The FVP-10 can support up to 7 pounds of accessories on its top. Text to voice feature enables users to communicate important information with both staff and customers.

  • Features
  • Specifications
  • PDF

• Front Exit

• Two Color Printing (two color paper required)

• Under-the-Counter Mountable

• Waterproof (IpX1 Certified)

• Voice Enabled Communication Tool

• Ultra High Speed Receipt Printing (250mm/sec)

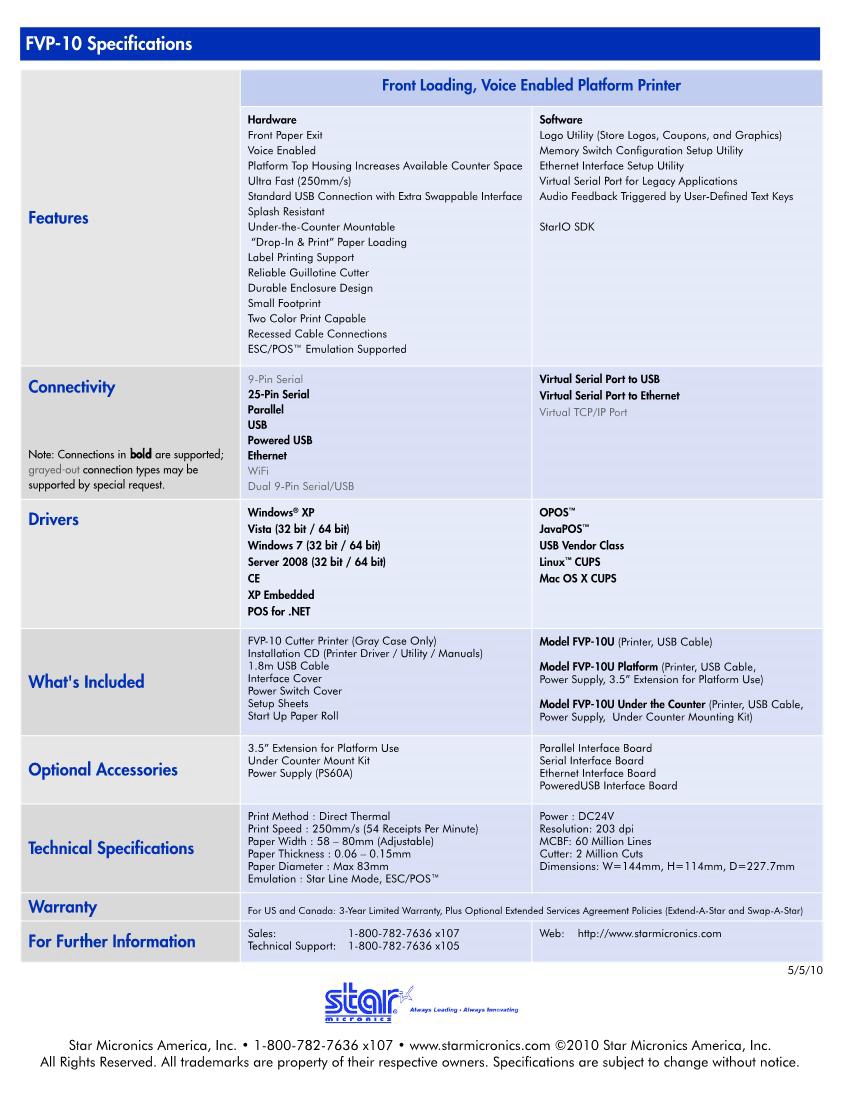

FVP-10 Printer Specifications
Printer Method Direct Line Thermal
Print Speed 250 mm/sec
Printer Case Color Gray
Models Available Guillotine Auto Cutter
Print Resolution 203x203 dpi (8 dots per mm) default, 406x203 dpi adjustable
Two Color Print Capability Red & Black / Blue & Black / Green & Black (Two color thermal paper required)
No. of Columns Star Mode = 40, ESC/POS™ Font A 42 Font B 64
Font Size 12 x 24
Character Set ANK 95, 32 Int 128 Graphic
International Code Pages Star Mode=40. ESC/POS™= 6 + 1 blank allowing an additional character page to be added
Bar Codes Extended barcode functionality - 9 versions / PDF 417 / QR Code / Maxicode Option
Eco Feature Compress receipt size both horizontally (80mm to 58mm) and vertically (50%)
Paper Specifications
Width

Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Paper Low Sensor
Maximum Print Width



58-80mm fully adjustable

0.065 ~ 0.15 mm
Up to 83 mm
"Drop-In & Print"
available by Default
Available by Default

Max 72mm
Top Margin 13 mm default, 3 mm selectable by memory switch
Auto Cutter Guillotine (Full or Partial, selectable)
Printer Open Sensor Yes
Flash  Memory 8MB
Label Support Black Mark Sensor Available
Power Supply External
Drivers Available Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, CE, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™,     Mac OS X, StarIO
Digitally Signed Driver Yes
Swappable Interfaces USB Standard; Serial, Parallel, Powered USB, Ethernet Interfaces optional
Emulation Modes Star Mode, ESC/POS™
Peripheral Drive Circuit 2 circuits, (24V max. 1A), 1 Compulsion input
Power Consumption  Average 1.8 Amp. Printing, 0.15 Amp. Standby
Requires PS60A External Power Supply
Operating Conditions Temperature: 5ºC to 45ºC
Humidity: 10% - 90% RH (without condensation)
Storage Conditions Temperature: -20ºC to 60ºC
Humidity: 10% - 90% RH
Dimensions 144 (W) x 227.7(D) x 114(H) mm
Safety Standards CE, EN55022, TUV, CB report, UL, c-UL, FCC, C-tick, Gost, CCC, VCCI
Reliability MCBF
Print Head
Auto Cutter		 60 Million Lines
150km
2 Million Cuts
3 models offered
FVP-10U:Installation CD with Drivers and Configuration Utility, USB Cable, Interface Cover, Power Switch Cover, Setup Sheets, Sample Paper Roll.

FVP-10 Under the counter: Installation CD with Drivers and configuration utility,Internal Speaker, USB cable, Power Supply and Mounting Kit included.

FVP-10 Platform: Installation CD with drivers and configuration utility, Internal Speaker, USB cable, Power Supply and Platform extension included

Warranty 3 Year Limited Manufacturer Warranty (US and Canada)
Options
Cable Cover Unit
Under-Counter Mount Kit
Power Supply (PS60A)
Communication Interfaces available: Parallel, Serial, Ethernet, PoweredUSB
Swap-A-Star Extended Warranty Program (US and Canada)
Extend-A-Star Extended Warranty Program (US and Canada)
