TSP650 SERIES

The TSP650 features the best of both worlds by coupling the comfort of legacy products with the speed and connection options demanded today in hospitality environments. The TSP650 features low cost and high performance combined with the ability to work effectively in any environment. Out of the box, the TSP650 can easily be configured and features all interface options including USB and Ethernet due to its plug-in modules.



  • Features
  • Specifications

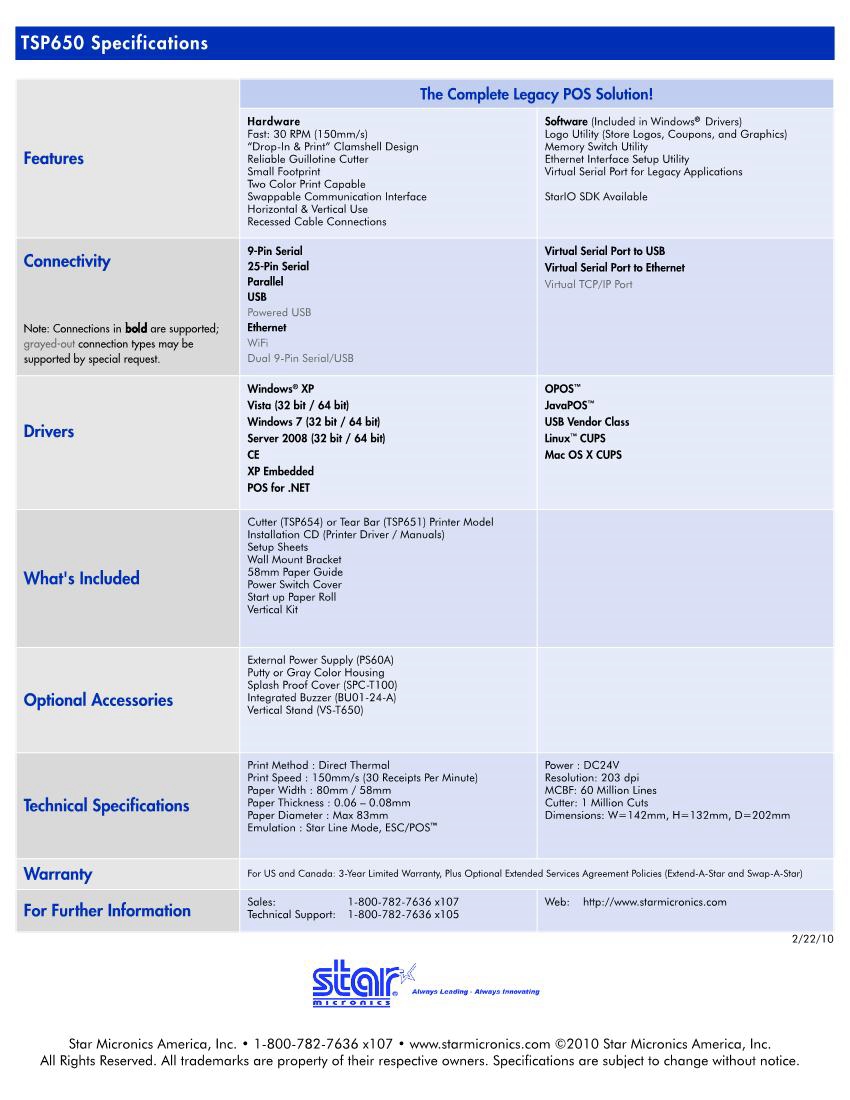

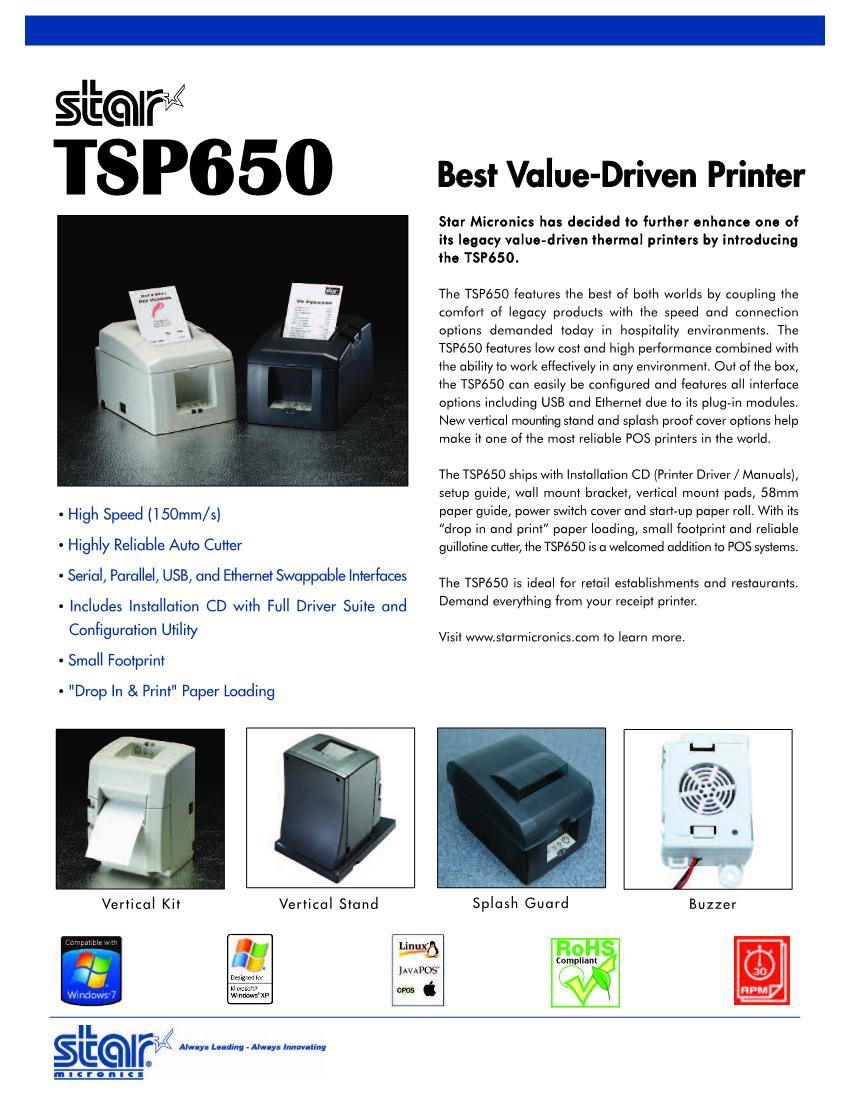

  • PDF

• High Reliability and Performance at a Low Cost

• Legancy Application Support

• Fast Printing (150mm/sec)

• "Drop-in & Print" Paper Loading

• Swappable Interfaces: Serial, Parallel, USB, LAN

• Optional Vertical Stand

• Installation CD with Full Driver Suite Included

TSP650
Printer Method Direct Line Thermal
Print Speed 30 Receipts Per Minute (150 mm/sec)
Printer Case Color Putty or Gray
Models Available Tear Bar or Auto Cutter
Print Resolution 203 dpi
Two Color Print Capability Red & Black / Blue & Black / Green & Black (Two color thermal paper required)
No. of Columns 48 / 64
Font Size 9 x 24
Character Set ANK 95, 32 Int 128 Graphic
International Code Pages Star Mode=40. ESC/POS™= 6 + 1 blank allowing an additional character page to be added
Bar Codes 9 versions / PDF 417 Option
Line Spacing 3 mm or 4 mm or programmable
Paper Specifications Width
Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Paper Low Sensor
Maximum Print Width

80mm standard, Adjustable 58mm with paper guide

0.065 ~ 0.085 mm
Up to 83 mm
"Drop-In & Print"
Standard
Standard
80mm paper = 72mm, 58mm paper = 52mm
Top Margin 13 mm minimum default (3mm selectable via Memory Switch Utility)
Auto Cutter Guillotine (Partial Cut Only)
Cover Open Sensor Yes
Logo Store Capacity 2 Mbit Flash ROM with Graphic Management Software
Flash ROM 16 Mbit
Multiple Copy Support Available through Star Raster Driver
Power Supply External; Requires PS60A External Power Supply
Drivers Available Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, CE, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO SDK
Swappable Interfaces Yes
Connectivity Serial, Parallel, USB, or Ethernet
Emulation Modes Star Mode, ESC/POS™
Peripheral Drive Circuit 2 circuits, (24V max. 1A), 1 Compulsion input
Power Consumption  Average 1.8 Amp. Printing, 0.15 Amp. Standby
Requires PS60A External Power Supply
Operating Conditions Temperature: 5ºC to 45ºC
Humidity: 10% - 90% RH (without condensation)
Storage Conditions Temperature: -20ºC to 60ºC
Humidity: 10% - 90% RH
Dimensions
Weight:
Auto Cutter Model
Tear Bar Model
142mm(W) x 202(D) x 132(H) mm

TSP654 – 1.72 kg
TSP651 – 1.56 kg
Safety Standards UL, C-UL, TüV, FCC, VCCI, EN55022, CE, Gost
Reliability MCBF
Print Head
Auto Cutter
60 Million Lines
100km
1 Million Cuts
Included with Printer Installation CD with Drivers and Configuration Utility, Wall Mount Bracket, Vertical Mount Accessory, 58mm Paper Guide, Power Switch Cover, Set Up Guide, Start Up Paper Roll
Warranty 3 Year Limited Manufacturer Warranty (US and Canada)
Options External Power Supply (PS60A)
Splash Proof Cover (SPC-T100)
Display Stand for Vertical Use (VS-T650)
Kitchen Buzzer (BU01-24-A)
Swappable Interfaces
24V Mobile Power Supply
Swap-A-Star Extended Warranty Program (US and Canada)
Extend-A-Star Extended Warranty Program (US and Canada)
