TM-U220

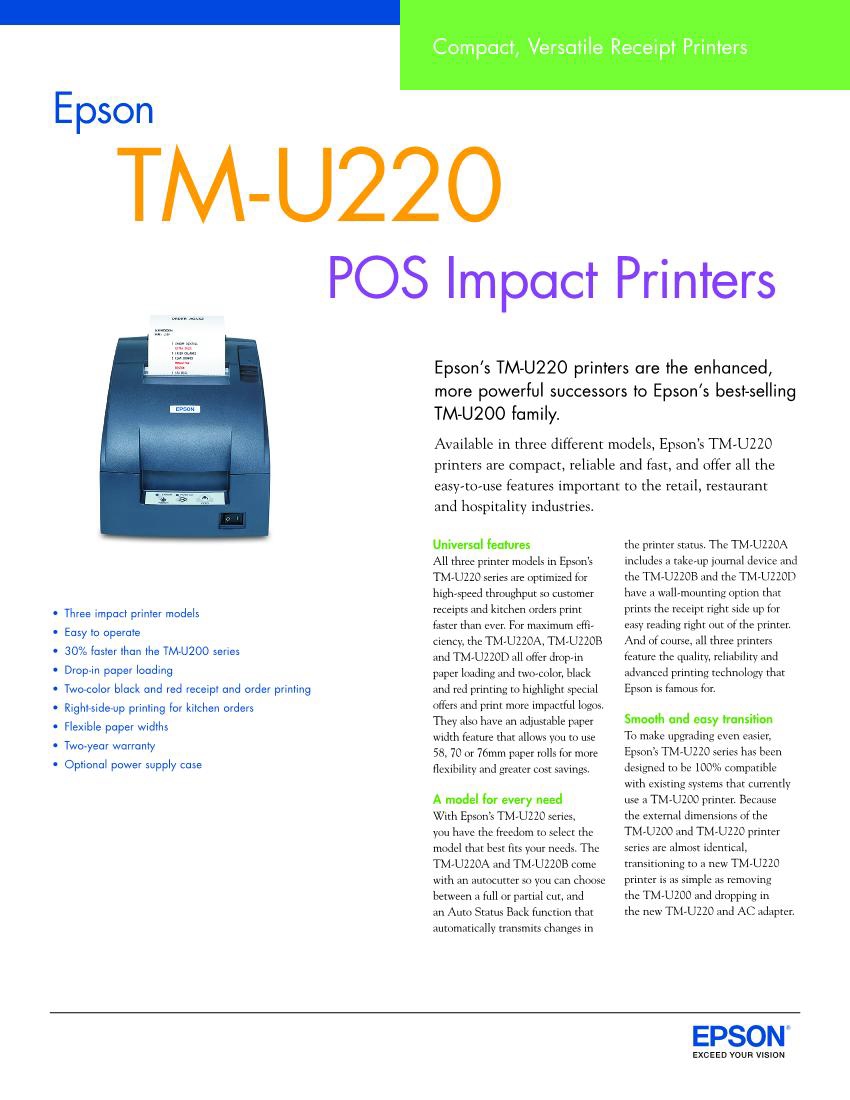

Epson's TM-U220 impact printers are compact, reliable and optimized for high-speed throughput. They offer all the easy-to-use features important to the retail, restaurant and hospitality industries and two-color printing to highlight special offers, kitchen orders and impactful logos. In addition, the TM-U220 printers have been designed to be 100% compatible with existing systems that currently use a TM-U200 printer.
  • Features
  • Specifications
  • PDF
  • Drivers & Utilities

• Three impact printer models

• Easy to operate

• 30% faster than the TM-U200 series

• Right-side-up printing for kitchen orders

• Ease-of-use features including drop-in paper loading, autocutter and status LEDs

• OS support for Microsoft® Windows 7, Vista, XP, 2000; Mac OS X v10.4, v10.5, v10.6 (Power PC/Intel Processor) and Linux

• Flexible paper widths

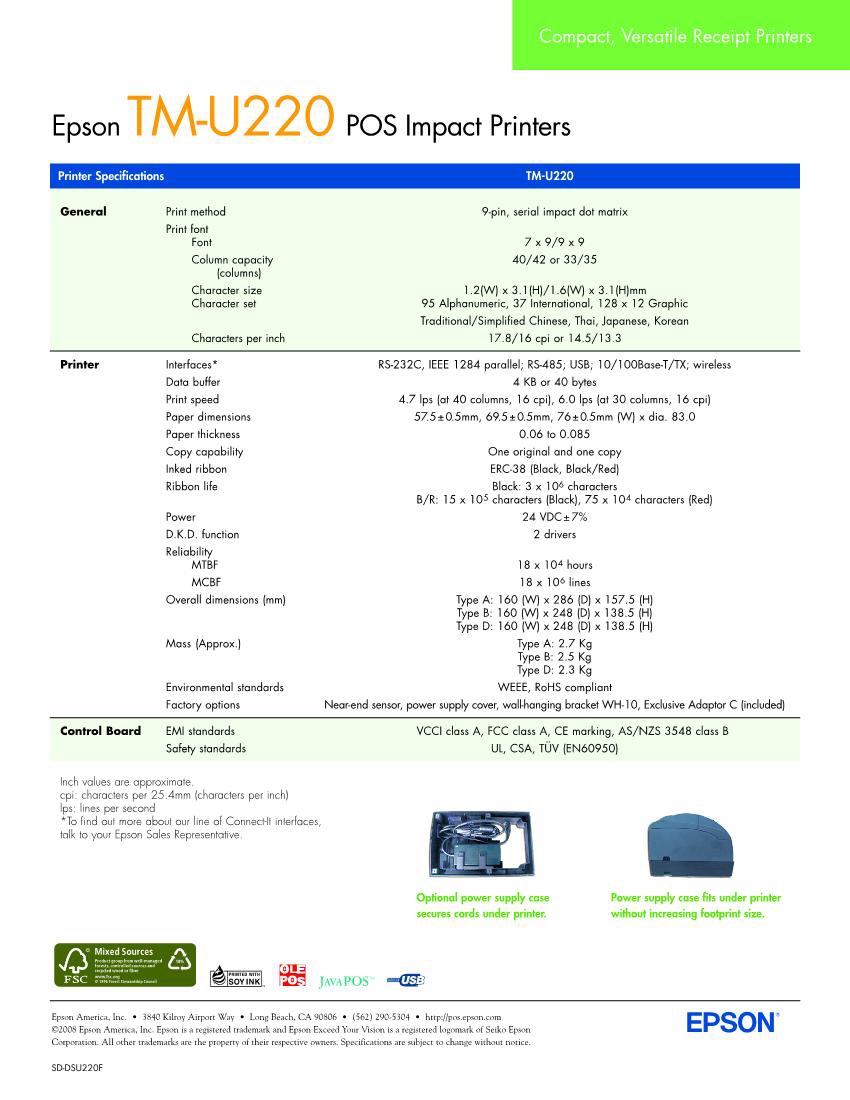

Print method 9-pin, serial impact dot matrix
Print fonts 7 x 9/9 x 9
Column capacity 40/42 or 33/35
Character size 1.2(W) x 3.1(H)/1.6(W) x 3.1(H)mm
Character set 95 Alphanumeric, 37 International, 128 x 12 Graphic
Traditional/Simplified Chinese, Thai, Japanese, Korean
Characters per inch 17.8/16 cpi or 14.5/13.3
Interfaces RS-232C, IEEE 1284 parallel; RS-485; USB; 10/100Base-T/TX; wireless (Only one interface can be used at a time.)
Data buffer 4 KB or 40 bytes
Print speed (max.) 4.7 lps (at 40 columns, 16 cpi), 6.0 lps (at 30 columns, 16 cpi)
Paper dimensions 57.5±0.5mm, 69.5±0.5mm, 76±0.5mm (W) x dia. 83.0
Paper thickness 0.06 to 0.085
Copy capability One Original and one copy
Inked ribbon ERC-38 (Black, Black/Red)
Ribbon life Black: 3 x 106 characters
B/R: 15 x 105 characters (Black), 75 x 104 characters (Red)
Power 24 VDC±7%
Power consumption Operating: approx. 1.8 A (mean)
D.K.D. function 2 drivers
Autocutter 2 million cuts
Overall dimensions Type A: 160 (W) x 286 (D) x 157.5 (H)
Type B: 160 (W) x 248 (D) x 138.5 (H)
Type D: 160 (W) x 248 (D) x 138.5 (H)
Weight Type A: 2.7 Kg
Type B: 2.5 Kg
Type D: 2.3 Kg
EMI standards VCCI class A, FCC class A, CE marking, AS/NZS 3548 class B
Safety standards UL, CSA, TÜV (EN60950)

U220

U220

Advanced Printer Driver Version 4.15b Windows XP, Vista, Server 2003, Server 2008
Advanced Printer Driver Version 3.01 Windows 2000
TMNet WinConfig Version 3.00a All Windows
For a full list of U220 Drivers and Utilities, Visit Eposn's U220 Tech Resources Page
