TSP 1000

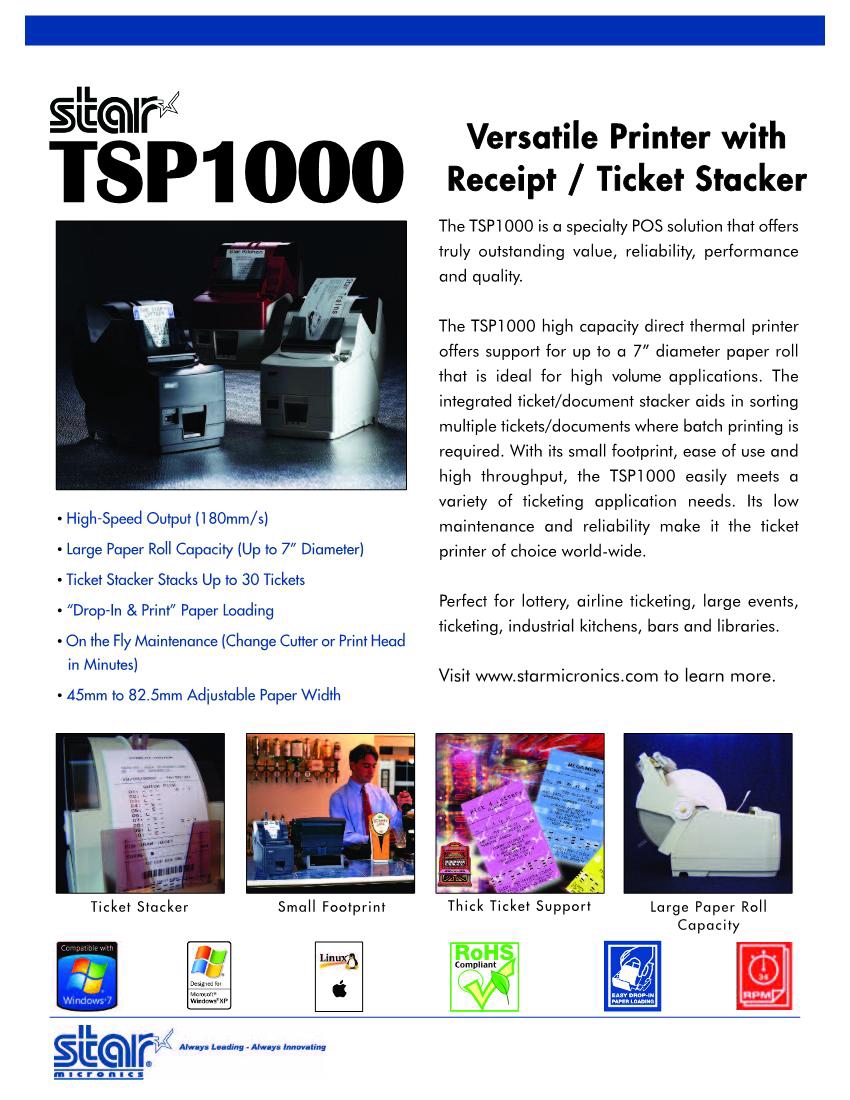

The TSP1000 is a specialty POS solution that offers truly outstanding value, reliability, performance and quality. The TSP1000 high capacity direct thermal printer offers support for up to a 7” diameter paper roll that is ideal for high volume applications. The integrated ticket/document stacker aids in sorting multiple tickets/documents where batch printing is required. Perfect for: lottery, large events, ticketing, industrial kitchen, bar and libraries.

  • Features
  • Specifications
  • PDF

• High Speed Output - Up to 180mm/sec

• "Drop-In & Print", Easy Paper Loading

• Large Paper Roll Capacity (Up to 180mm Diameter)

• Multiple Paper Widths (45-82.5mm Adjustable)

• Ticket Stacker Fitted as Standard

• Variable Position High Quality Black Mark Sensor

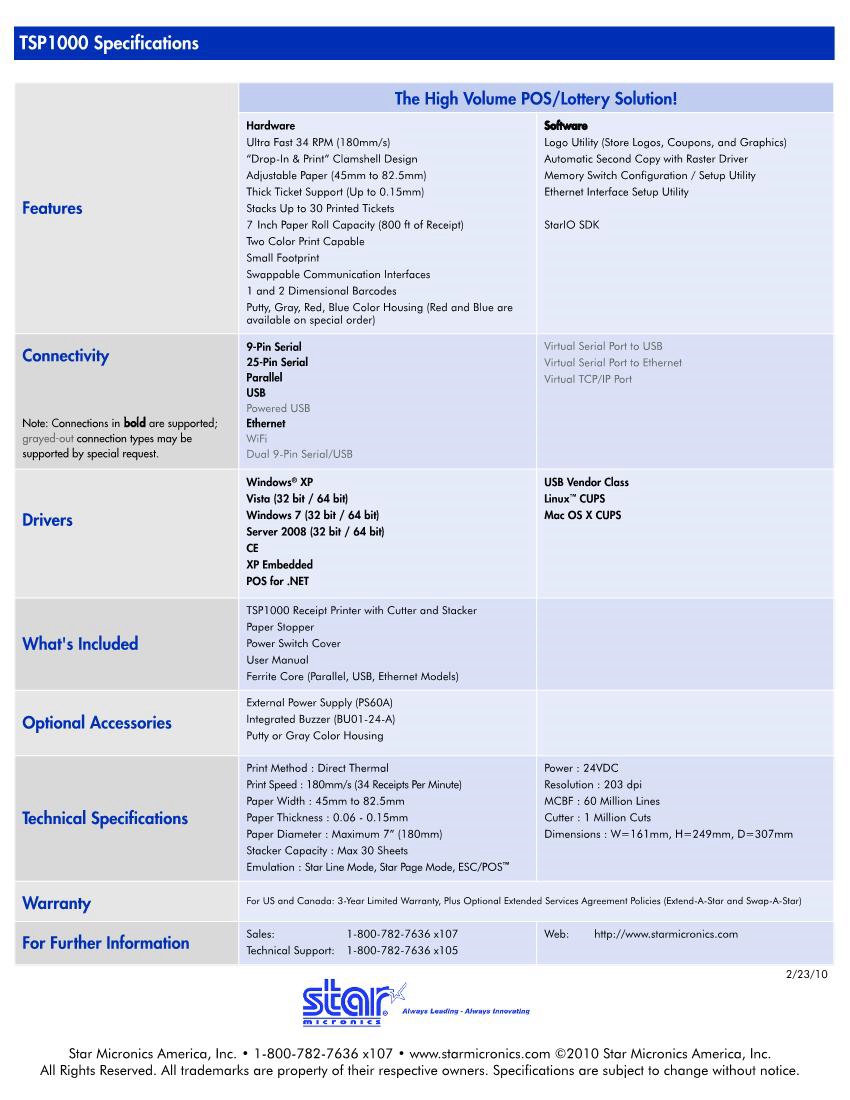

SPECIFICATIONS – TSP1000

Printer Method

Direct Line Thermal

Print Speed

34 Receipts Per Minute (180 mm/sec)

Printer Case Color

Putty or Gray Standard
Red, Blue, or Custom Color Available for Large Orders

Model Available

Auto Cutter Only

Print Resolution

203 dpi (8 dots per mm)

Two Color Print Capability

Red & Black / Blue & Black / Green & Black (Two color thermal paper required)

No. of Columns

Star Mode = 40, ESC/POS™ = 10 + 1 blank allowing an additional character page to be added

Font Size

12 x 24

Character Set

ANK 95, 32 Int 128 Graphic

International Code Pages

Star Mode=40. ESC/POS™= 6 + 1 blank allowing an additional character page to be added

Bar Codes

9 versions / PDF 417 Option

Line Spacing

3 mm or 4 mm or programmable

Paper Specifications
TSP1043 Width
TSP1045 Width

Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Black Mark Sensor
Paper Low Sensor
Maximum Print Width
Left/Right Margin


80 mm Standard; Adjustable 45 – 82.5 mm
82.5 mm Standard; Adjustable 45 – 82.5 mm

0.065 ~ 0.15 mm
Up to 7 in (180 mm) (Dependant on Paper Weight)
"Drop-In & Print"
Standard
Standard
Standard
80mm Maximum
0mm (Left or Right); 1st Column Print Supported

Top Margin

12 mm minimum default

Ticket Stacker

Standard; 30 Receipts or Tickets Maximum with Ticket Sensor

Ticket Length

50-300 mm

Auto Cutter

Guillotine (Full Cut Only)

Cutter Position

Approximately 11mm distance between cutter and top of form

Cover Open Sensor

Yes

Logo Store Capacity

2 Mbit

Flash ROM / SRAM

2 x 8 Mbit plus 2 x 1 Mbit Static RAM

Journal Capability

N/A

Label Support

Yes; Black timing marks between labels required

Power Supply

External; Requires PS60A External Power Supply

Drivers Available

Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, CE, POSReady 2009, USB Vendor Class, Linux™, Mac OS X, StarIO SDK

Digitally Signed (WHQL)

N/A

Swappable Interfaces

Yes

Connectivity

Serial, Parallel, USB, or Ethernet

Emulation Modes

Star Mode, ESC/POS™

Peripheral Drive Circuit

1 circuits, (24V max. 1A), No Compulsion input

Power Consumption

Average 2.0 Amp. Printing, 0.1 Amp. Standby
Requires PS60A External Power Supply

Operating Conditions

Temperature: 5ºC to 45ºC
Humidity: 10% - 90% RH (without condensation)

Storage Conditions

Temperature: -20ºC to 60ºC
Humidity: 10% - 90% RH

Dimensions
Weight

161mm(W) x 306.5 (D) x 249(H) mm
3.0 kg

Safety Standards

UL, C-UL, TüV, FCC, VCCI, EN55022, CE, CB

Reliability MCBF
Print Head
Auto Cutter

60 Million Lines
100km
1 Million Cuts

Included with Printer

User Manual, Set Up Guide, Paper Stopper, Power Switch Cover, Ferrite Core, Roll Paper Holders (TSP1043 Only), Roll Paper Shaft (TSP1043 Only)

Warranty

3 Year Limited Manufacturer Warranty (US and Canada)

Options

External Power Supply (PS60A)
24V Mobile Power Supply
Kitchen Buzzer (BU01-24-A)
Swappable Interfaces
Swap-A-Star Extended Warranty Program (US and Canada)
Extend-A-Star Extended Warranty Program (US and Canada)
