TM-L90 Label and Barcode Printer

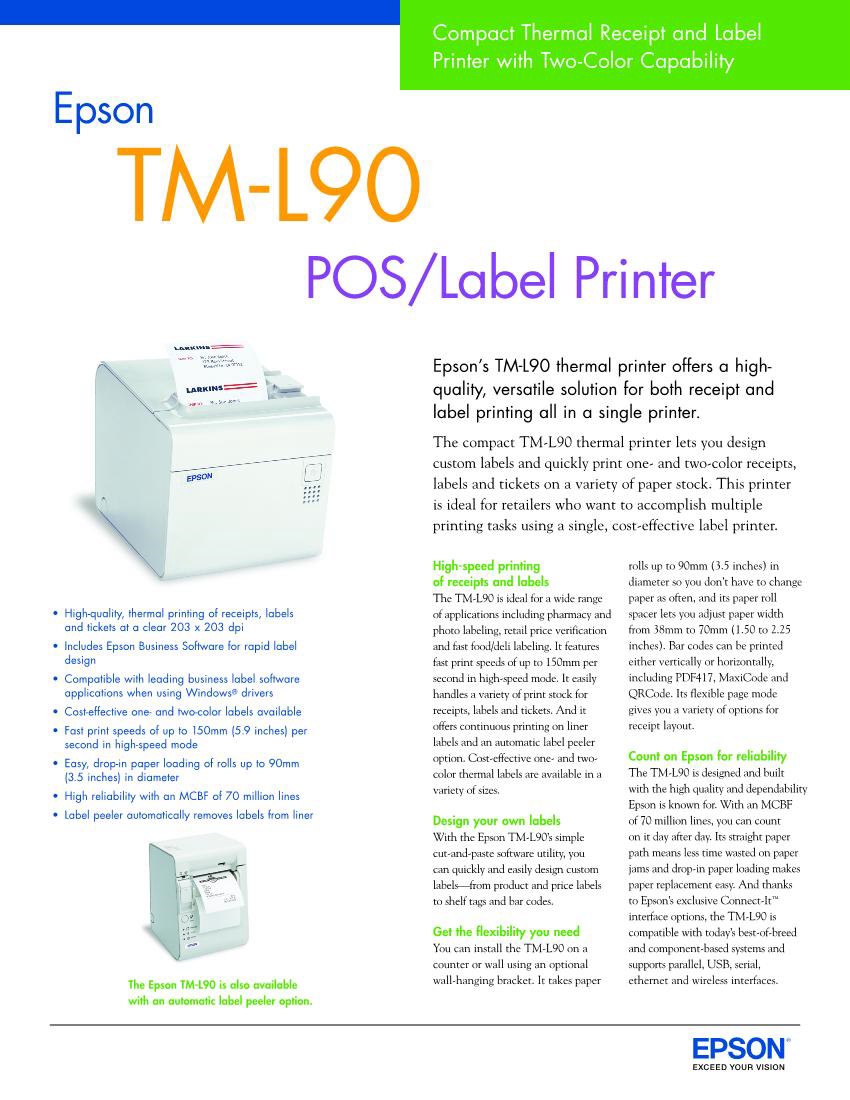

This high quality printer offers fast label and barcode printing in one compact unit. With its software utility you can quickly design custom labels and barcodes and print in one- or two-colors on a variety of print stocks. It supports continuous printing on liner labels and cost-effective one and two-color thermal labels are available from Epson in a variety of sizes.

Epson TM L90 Label and Barcode printer

TM-L90.PDF
  • Features
  • Specifications
  • PDF

• High-quality, thermal printing of receipts, labels and tickets at a crisp 203 x 203 dpi

• Software utility for rapid design of labels

• Cost-effective one- and two-color labels available

• Fast print speeds of up to 150mm per second

• Easy, drop-in paper loading of rolls up to 90mm

• High reliability with an MCBF of 70 million lines

• Label peeler automatically removes labels from liner

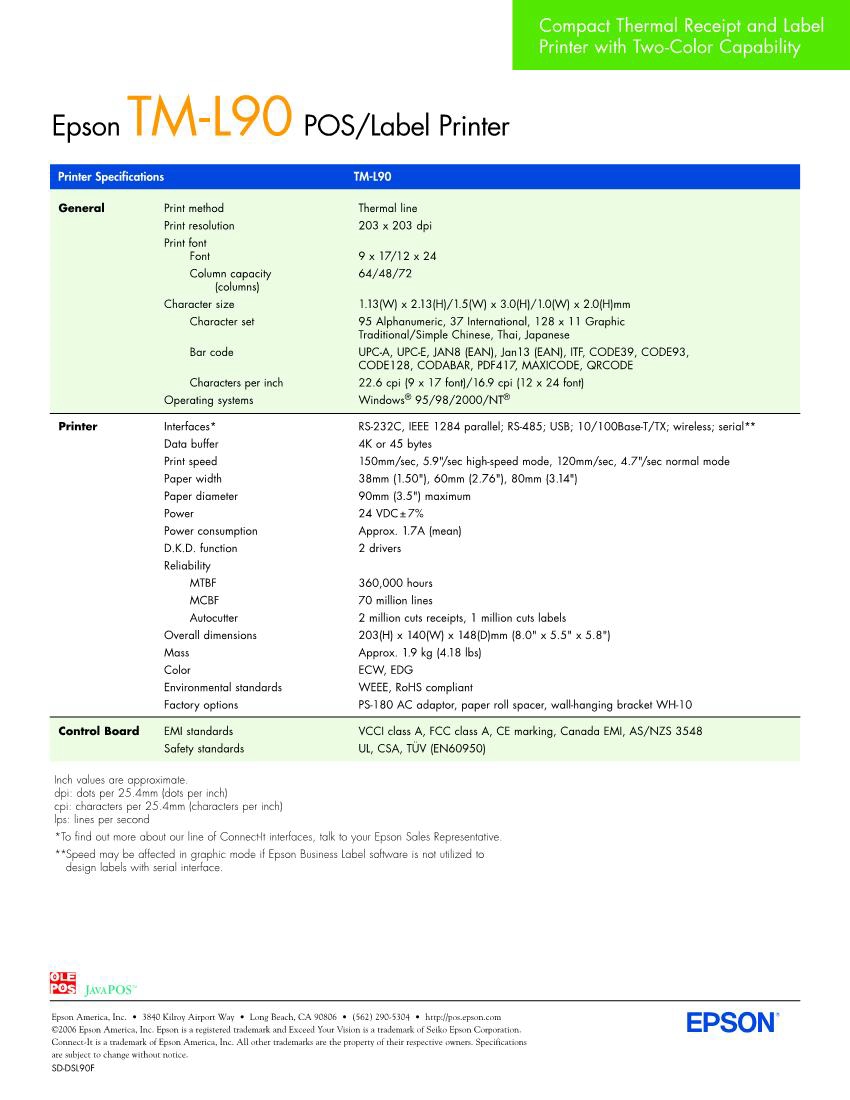

Print method Thermal line printing
Print resolution 203 x 203 dpi
Print font 9 x 17/12 x 24
Column capacity (columns) 64/48/72
Character size 1.13(W) x 2.13(H)/1.5(W) x 3.0(H)/1.0(W) x 2.0(H)mm
Character set 95 Alphanumeric, 37 International, 128 x 11 Graphic Traditional/Simple Chinese, Thai, Japanese
Bar code UPC-A, UPC-E, JAN8 (EAN), Jan13 (EAN), ITF, CODE39, CODE93, CODE128, CODABAR, PDF417, MAXICODE, QRCODE
Characters per inch 22.6 cpi (9 x 17 font)/16.9 cpi (12 x 24 font)
Operating systems Windows® 95/98/2000/NT®
Interfaces* RS-232C, IEEE 1284 parallel; RS-485; USB; 10/100Base-T/TX; wireless; serial**
Data buffer 4K or 45 bytes
Print speed 150mm/sec, 5.9"/sec high-speed mode, 120mm/sec, 4.7"/sec normal mode
Paper width 38mm (1.50"), 60mm (2.76"), 80mm (3.14")
Paper diameter 90mm (3.5") maximum
Power 24 VDC±7%
Power consumption Approx. 1.7A (mean)
D.K.D. function 2 drivers
Autocutter 2 million cuts receipts, 1 million cuts labels
Overall dimensions 203(H) x 140(W) x 148(D)mm (8.0" x 5.5" x 5.8")
Weight Approx. 1.9 kg (4.18 lbs)
Color Color ECW, EDG
Environmental standards WEEE, RoHS compliant
Factory options PS-180 AC adaptor, paper roll spacer, wall-hanging bracket WH-10
