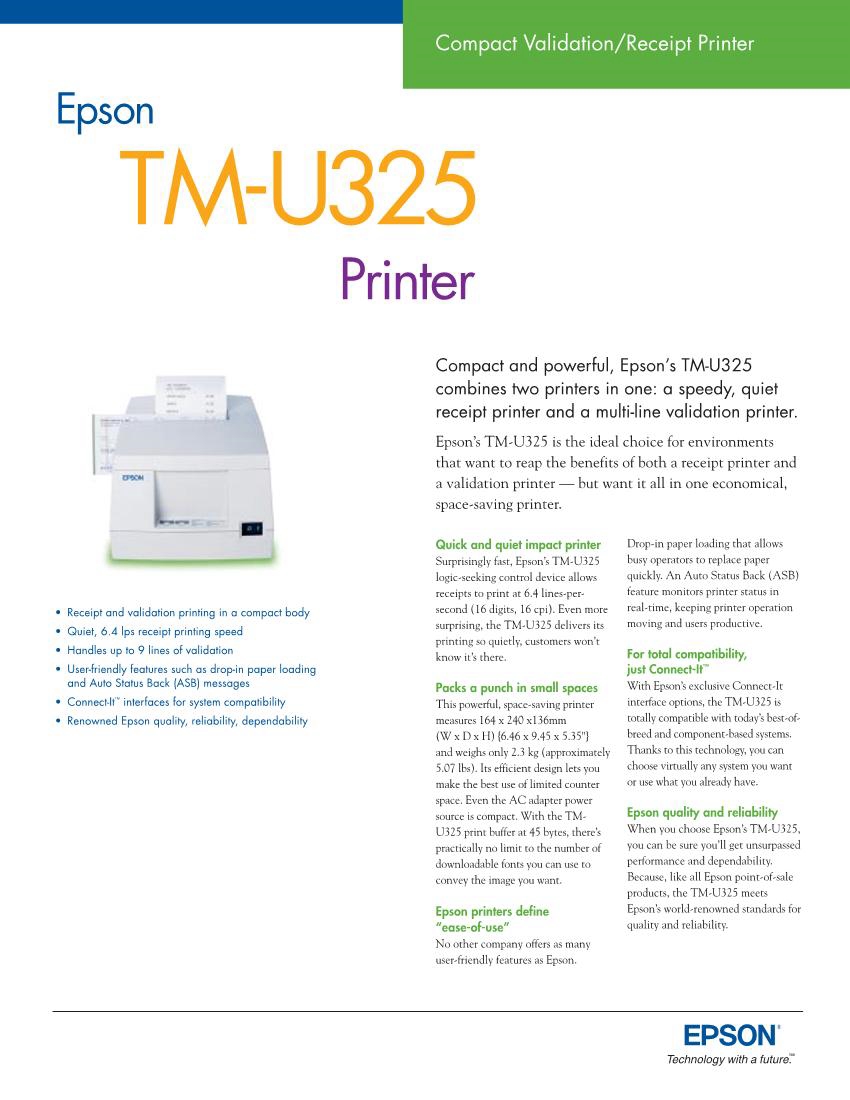

TM-U325 Receipt  /  Validation Printer

The Epson TM-U325 is a cost-effective choice for environments that need the benefits of both receipt and validation printing all in one space-saving printer. Fast and quiet, the TM-U325 provides crisp, clean receipts and handles up to nine lines of validation printing. The drop-in roll paper loading system enables easy paper replacement and the semiautomatic paper loading function reduces the work for busy operators.
  • Features
  • Specifications
  • PDF

• Receipt and validation printing in a compact footprint

• Quiet, 6.4 lps receipt printing speed

• Handles up to 9 lines of validation

• User-friendly features such as drop-in paper loading and Auto Status Back (ASB) messages

• Connect-It™ interfaces for system compatibility

• OS support for Microsoft® Windows 7, Vista, XP, 2000; Mac OS X v10.4, v10.5, v10.6 (Power PC/Intel Processor) and Linux

• Renowned Epson quality, reliability, dependability

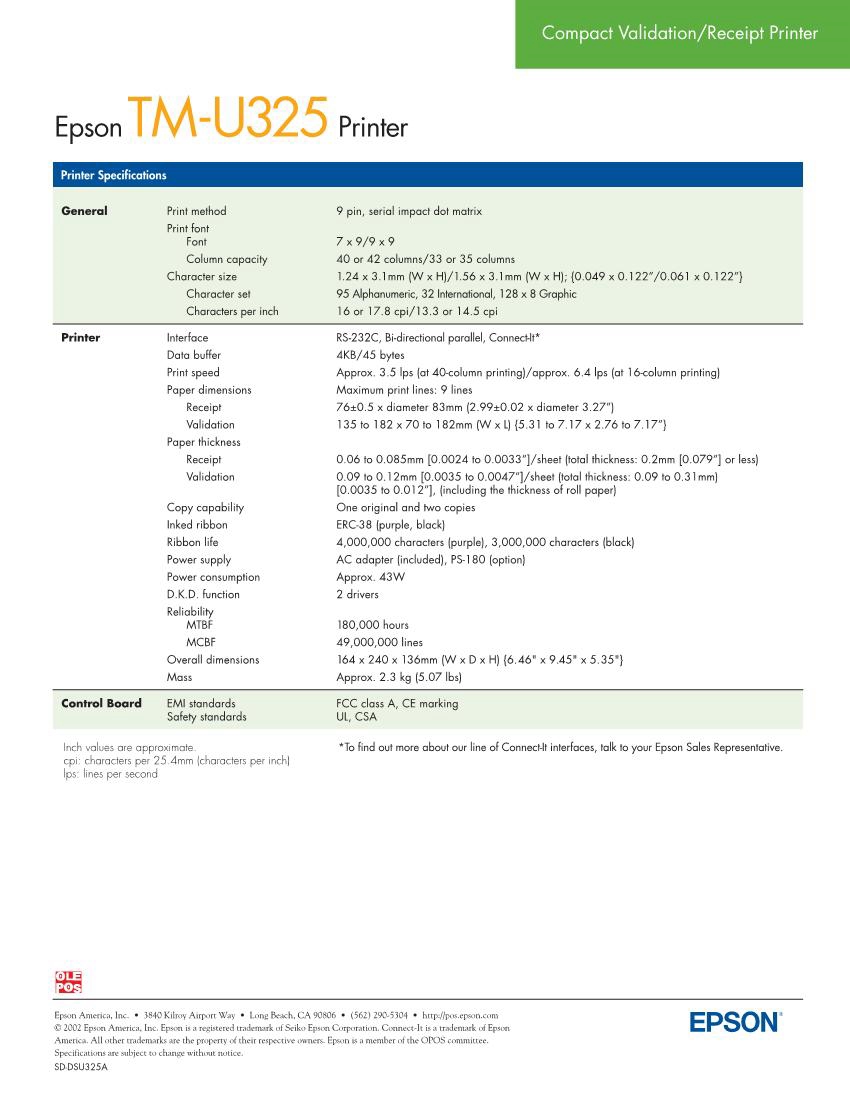

Print method 9-pin, serial impact dot matrix
Print fonts 7 x 9/9 x 9
Column capacity 40 or 42 columns/33 or 35 columns
Character size 1.24 x 3.1mm (W x H)/1.56 x 3.1mm (W x H); {0.049 x 0.122”/0.061 x 0.122”}
Character set 95 Alphanumeric, 32 International, 128 x 8 Graphic
Characters per inch 16 or 17.8 cpi/13.3 or 14.5 cpi
Interfaces RS-232C, Bi-directional parallel, Connect-It(Only one interface can be used at a time.)
Data buffer 4 KB or 45 bytes
Print speed Approx. 3.5 lps (at 40-column printing)/approx. 6.4 lps (at 16-column printing)
Paper dimensions Maximum print lines: 9 lines
Receipt
 76±0.5 x diameter 83mm (2.99±0.02 x diameter 3.27”)
Validation
 135 to 182 x 70 to 182mm (W x L) {5.31 to 7.17 x 2.76 to 7.17”}
Paper thickness
Receipt
 0.06 to 0.085mm [0.0024 to 0.0033”]/sheet (total thickness: 0.2mm [0.079”] or less)
Validation
 0.09 to 0.12mm [0.0035 to 0.0047”]/sheet (total thickness: 0.09 to 0.31mm)
[0.0035 to 0.012”], (including the thickness of roll paper)
Copy capability One original and two copies
Inked ribbon ERC-38 (purple, black)
Ribbon life 4,000,000 characters (purple), 3,000,000 characters (black)
Power supply AC adapter (included), PS-180 (option)
Power consumption Approx. 43W
D.K.D. function 2 drivers
Reliability
MTBF
 180,000 hours
MCBF
 49,000,000 lines
Overall dimensions 164 x 240 x 136mm (W x D x H) {6.46" x 9.45" x 5.35"}
Weight Approx. 2.3 kg (5.07 lbs)
Color ECW, EDG
EMI standards FCC class A, CE marking
Safety standards UL, CSA
