TSP 800II

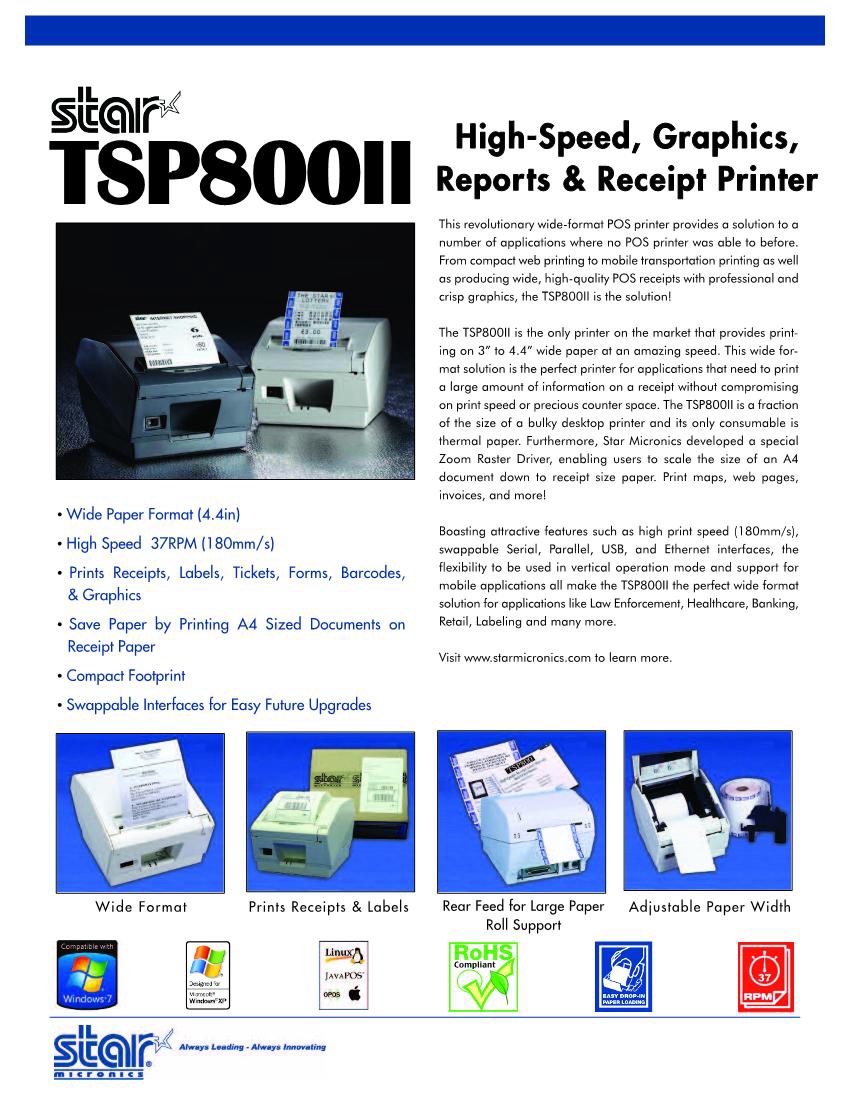

This revolutionary wide-format POS printer provides a solution to a number of applications where no POS printer was able to before. From compact web printing to mobile transportation printing as well as producing wide high-quality POS receipts with professional and crisp graphics, the TSP800II is the solution!

  • Features
  • Specifications
  • PDF

• Ultra High Speed: 37 Receipts Per Minute (180mm/sec)

• Two Color Printing

• Print Letter-Sized Documents on 4.4" Wide Roll Paper

• "Drop-In & Print" Paper Loading

• Logo Store Utility for Coupons and Graphic Storage

• Barcode Capabilities

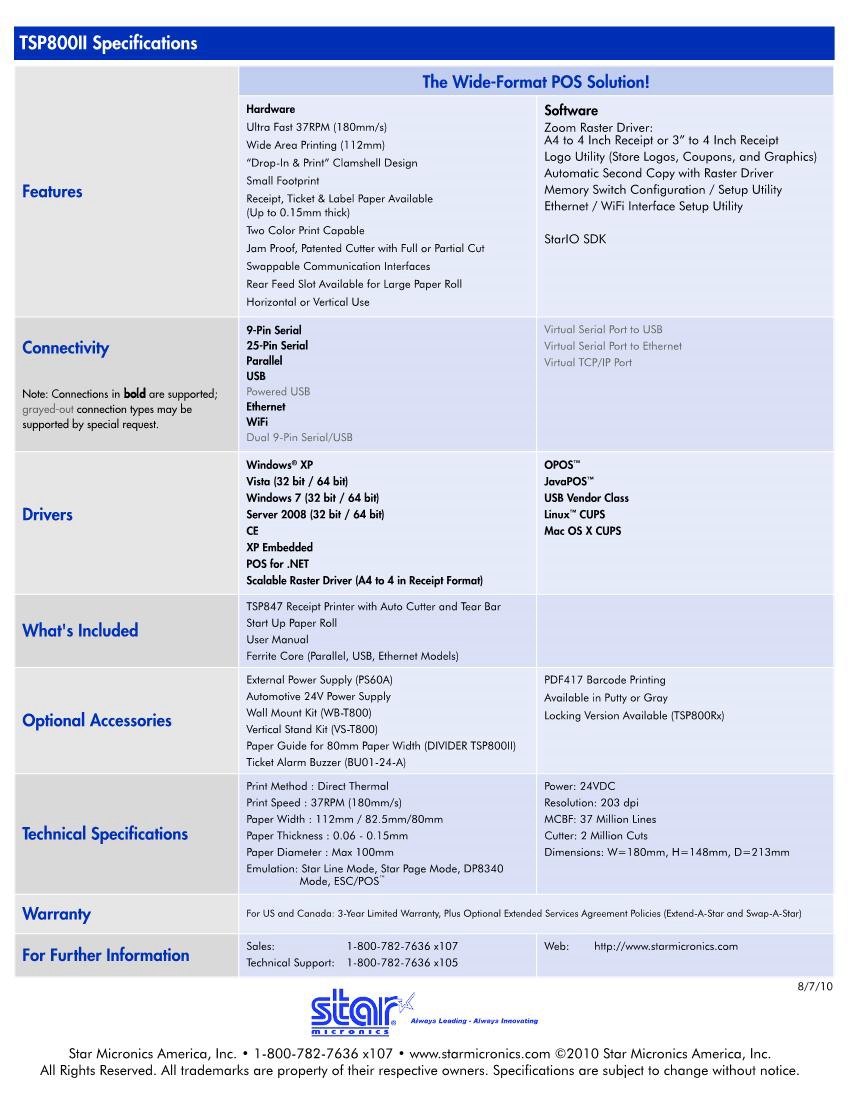

TSP 800II
Printer Method Direct Line Thermal
Print Speed 37 Receipts Per Minute (180 mm/sec)
Printer Case Color Putty or Gray
Model Available TSP847 Includes Both Tear Bar and Auto Cutter
Print Resolution
(Vertical x Horizontal)		 203 (8 dots per mm)
Two Color Print Capability Red & Black / Blue & Black / Green & Black (Two color thermal paper required)
No. of Columns 104mm Max with A4 Reduction Facility
Font Size 12 x 24
Character Matrix ANK, 12 x 24, IBM Graphic 12 x 32
Character Set ANK 95, 32 Int 128 Graphic
Code Pages / Character Table 40 Code Pages, Katakana, IBM
Bar Codes 9 versions
Line Spacing 3 mm or 4 mm or programmable
Paper Specifications
Width

Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Black Mark Sensor
Paper Low Sensor
Maximum Print Width
104mm standard, Adjustable 82.5mm, 80mm, 58mm with Paper Guide

0.065 ~ 0.15 mm
Up to 100 mm
"Drop-In & Print"
Standard
Standard
Standard
104 mm Maximum
Top Margin 15 mm minimum default
External Paper Feed Support Yes
Auto Cutter Guillotine (Full or Partial Cut Selectable)
Cover Open Sensor Yes
Flash ROM / SRAM 2 x 8 MBbit plus 2 x 1 Mbit Statis RAM
Multiple Copy Support Supported through 2nd Copy Raster Driver
Label Support Yes; Black timing marks between labels required
Power Supply External; Requires PS60A External Power Supply
Drivers Available Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, CE, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO SDK, Scalable Raster Driver
Swappable Interfaces Yes
Connectivity Serial, Parallel, USB, Ethernet, or WiFi
Emulation Modes Star Mode, DP8340 Mode, ESC/POS™
Peripheral Drive Circuit 2 circuits, (24V max. 1A), 1 Compulsion input
Power Consumption  Average 1.8 Amp. Printing, 0.1 Amp. Standby
Requires PS60A External Power Supply
Operating Conditions Temperature: 5ºC to 45ºC
Humidity: 10% - 90% RH (without condensation)
Storage Conditions Temperature: -20ºC to 60ºC
Humidity: 10% - 90% RH
Dimensions
Weight		 180mm(W) x 213(D) x 148(H) mm
1.7 kg
Safety Standards UL, C-UL, TüV, CB, FCC, VCCI, EN55022, CE
Reliability MCBF
Auto Cutter		 37 Million Lines
2 Million Cuts
Included with Printer User Manual, Start Up Paper Roll, Ferrite Core
Warranty 3 Year Limited Manufacturer Warranty (US and Canada)
Options External Power Supply (PS60A)
Kitchen Buzzer (BU01-24-A)
Vertical Stand (VS-T800)
Wall Mount Bracket (WB-T800)
Paper Guide (DIVIDER T800)
Swappable Interfaces
24V Mobile Power Supply
Swap-A-Star Extended Warranty Program (US and Canada)
Extend-A-Star Extended Warranty Program (US and Canada)
