TM-T88V

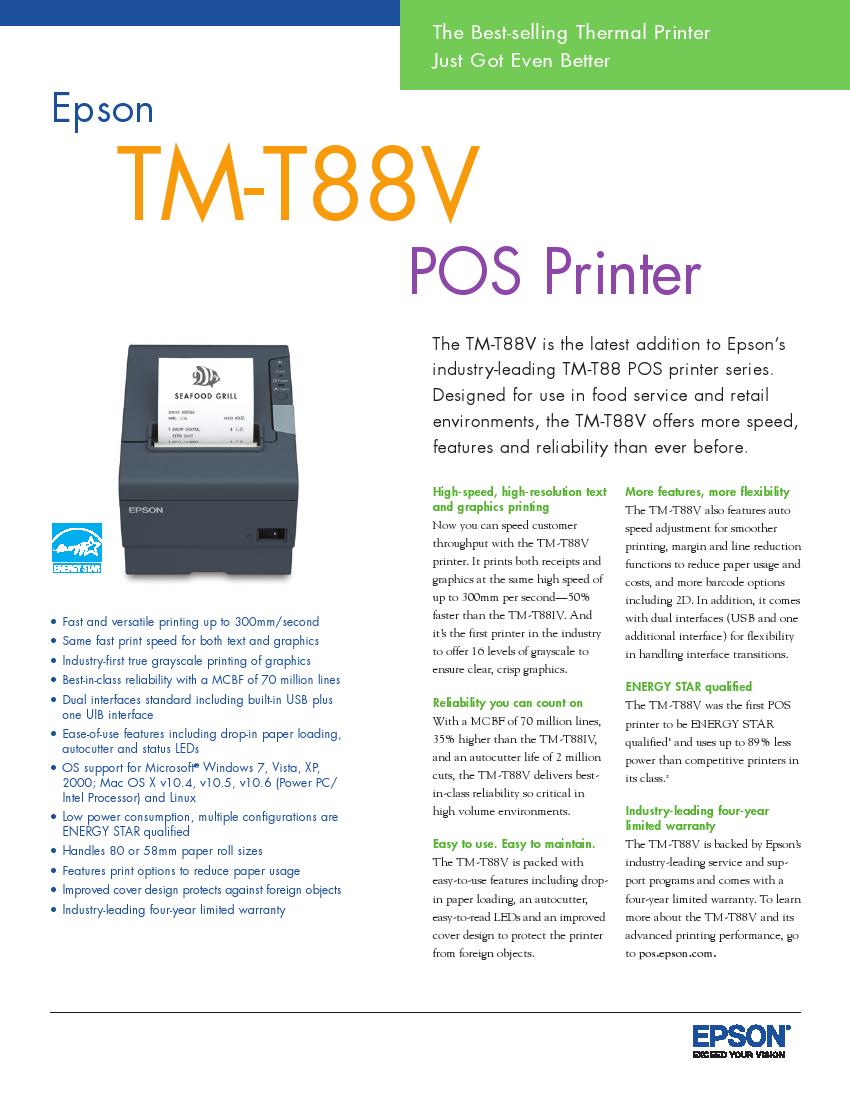

The TM-T88V POS thermal printer is the latest addition to Epson's industry-leading TM-T88 POS printer series. The TM-T88V delivers more speed and more reliability than ever before. It offers 50% faster printing of text and graphics than the TM-T88IV, 35% more reliability, new ease-of-use features and dual interfaces. In addition, the TM-T88V was the first POS thermal printer to be ENERGY STAR qualified* and is the most energy efficient in its class.**

** For more information go to pos.epson.com/energytest.

  • Features
  • Specifications
  • PDF

• Fast and versatile printing up to 300mm/second

• Same fast print speed for both text and graphics

• Best-in-class reliability with a MCBF of 70 million lines

• Dual interfaces standard including built-in USB plus one UIB interface

• Ease-of-use features including drop-in paper loading, autocutter and status LEDs

• OS support for Microsoft® Windows 7, Vista, XP, 2000; Mac OS X v10.4, v10.5, v10.6 (Power PC/Intel Processor) and Linux

• Handles 80 or 58mm paper roll sizes

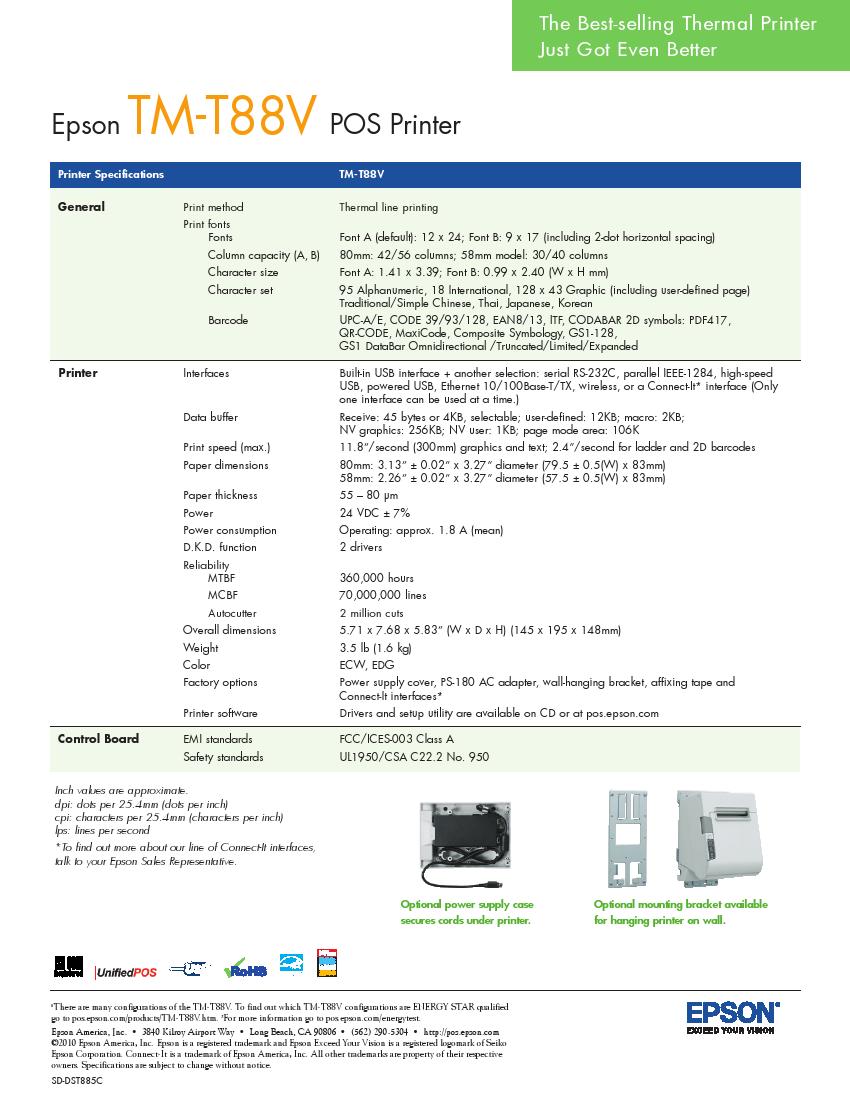

Print method Thermal line printing
Print fonts Font A (default): 12 x 24; Font B: 9 x 17 (including 2-dot horizontal spacing)
Column capacity (A, B) 80mm: 42/56 columns; 58mm model: 30/40 columns
Character size Font A: 1.41 x 3.39; Font B: 0.99 x 2.40 (W x H mm)
Character set 95 Alphanumeric, 18 International, 128 x 43 Graphic (including user-defined page) Traditional/Simple Chinese, Thai, Japanese, Korean
Barcode UPC-A/E, CODE 39/93/128, EAN8/13, ITF, CODABAR 2D symbols: PDF417, QR-CODE, MaxiCode, Composite Symbology, GS1-128, GS1 DataBar Omnidirectional /Truncated/Limited/Expanded
Interfaces Built-in USB interface + another selection: serial RS-232C, parallel IEEE-1284, high-speed USB, powered USB, Ethernet 10/100Base-T/TX, wireless, or a Connect-It* interface (Only one interface can be used at a time.)
Data buffer Receive: 45 bytes or 4KB, selectable; user-defined: 12KB; macro: 2KB; NV graphics: 256KB; NV user: 1KB; page mode area: 106K
Print speed (max.) 11.8”/second (300mm) graphics and text; 2.4”/second for ladder and 2D barcodes
Paper dimensions 80mm: 3.13” ± 0.02” x 3.27” diameter (79.5 ± 0.5(W) x 83mm), 58mm: 2.26” ± 0.02” x 3.27” diameter (57.5 ± 0.5(W) x 83mm)
Paper thickness Paper thickness 55 – 80 μm
Power 24 VDC ± 7%
Power consumption Operating: approx. 1.8 A (mean)
D.K.D. function 2 drivers
Autocutter 2 million cuts
Overall dimensions 5.71 x 7.68 x 5.83” (W x D x H) (145 x 195 x 148mm)
Weight 3.5 lb (1.6 kg)
Color ECW, EDG
EMI standards FCC/ICES-003 Class A
Safety standards UL1950/CSA C22.2 No. 950
